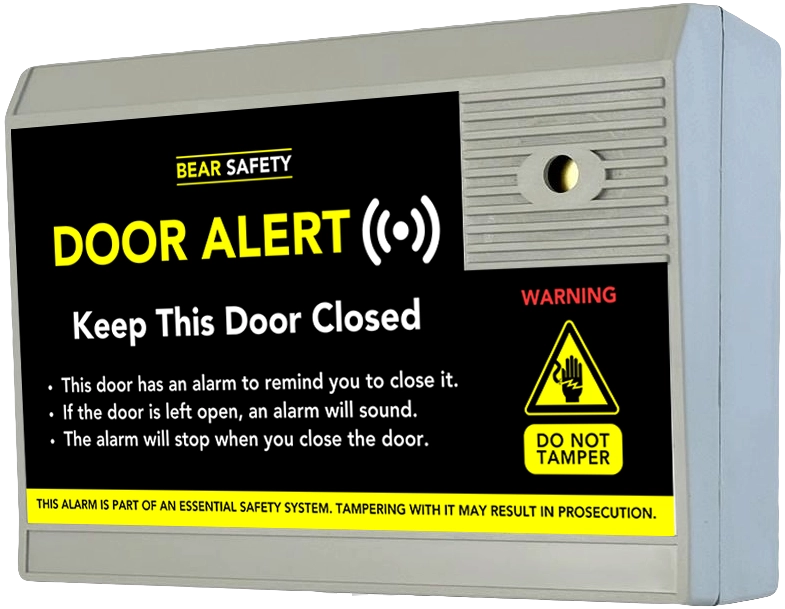

Door Alert

Door Alert is a simple, effective alarm system designed to prevent doors from being left open for extended periods. When a door is left open beyond a set time, the unit activates an audible alarm — prompting immediate action to close the door and restore control. It’s commonly used in environments where open doors can lead to unwanted risks, such as smoke spread, temperature loss, or disruption to controlled areas.

MODEL/S AVAILABLE:

190003 – Mains Powered with Alarm Relay Output

KEY FEATURES:
  • High-output 105 dB audible alarm
  • Adjustable time delay (30 seconds to 7 minutes)
  • Automatic reset when door is closed
  • Integrated tamper switch
  • Clear on-unit instructions
  • Durable ABS enclosure
  • Simple surface-mounted installation
  • UKCA and CE marked, RoHS compliant
  • Manufactured in the UK
  • CONTACT US:
    sales@bearsafety.co.uk
    Send an enquiry
    HOW IT WORKS

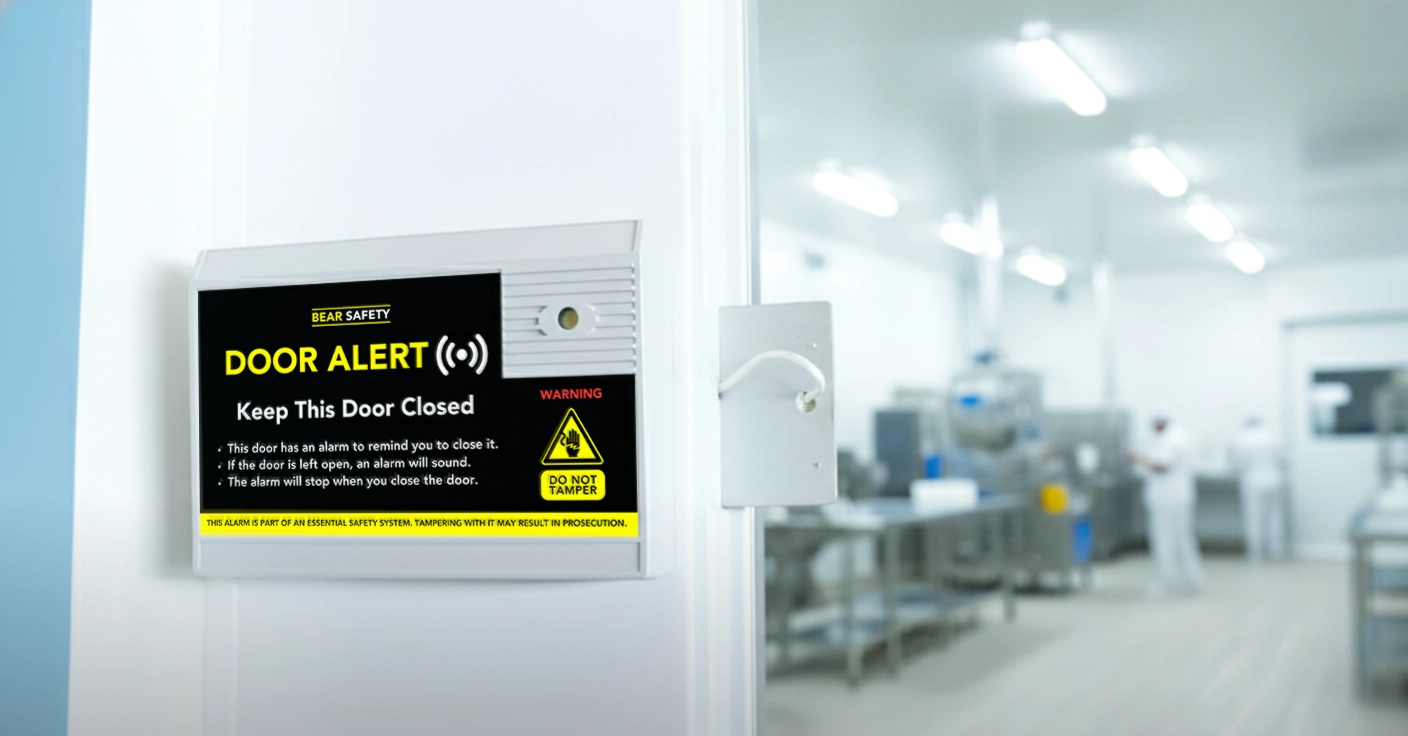

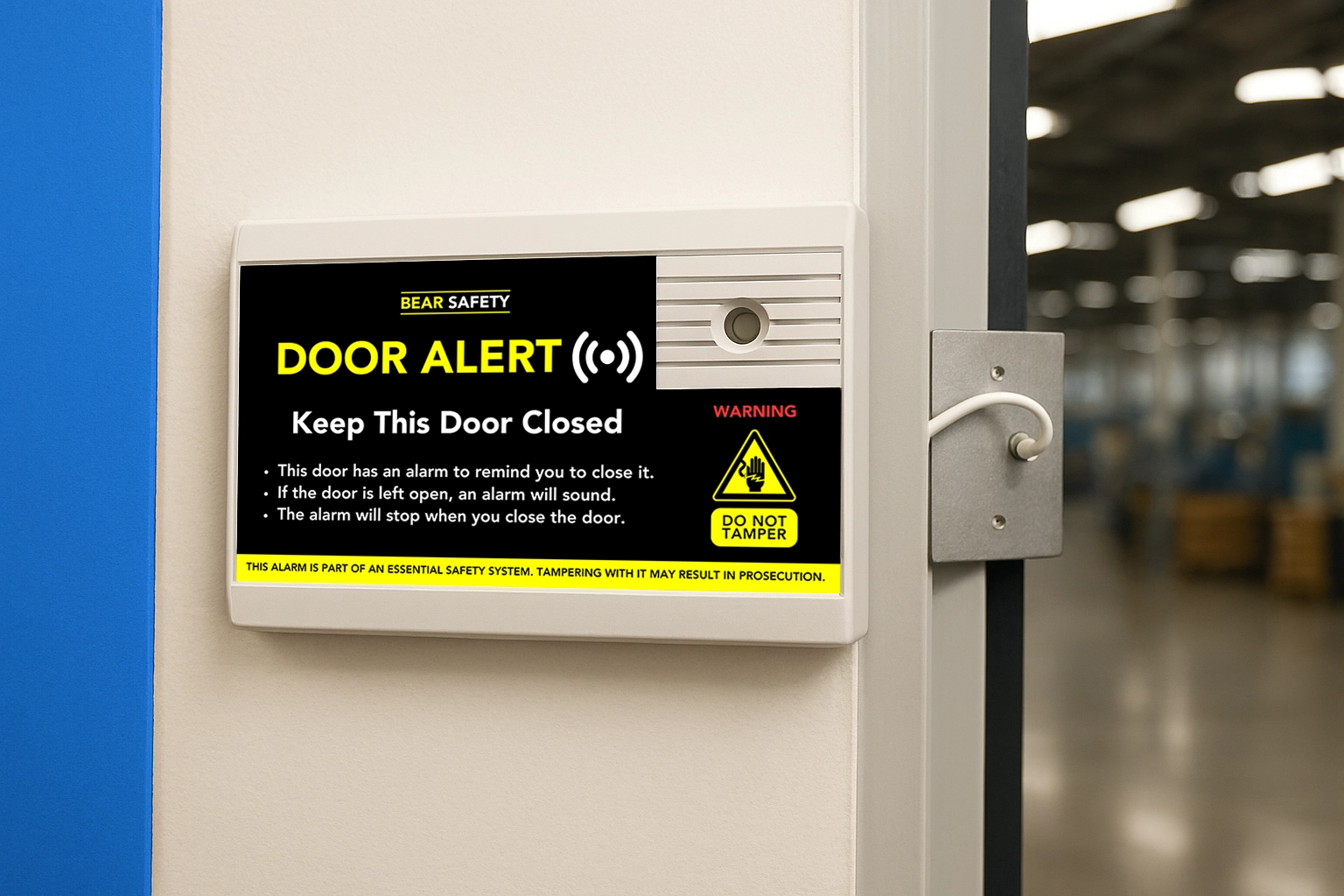

  • Installed directly onto the door and frame
  • When the door is opened, a timer begins
  • If the door remains open beyond the set delay, an audible alarm is triggered
  • Once the door is closed, the system automatically resets
  • WHERE IT'S USED
  • Commercial kitchens
  • Student accommodation
  • Warehousing and logistics sites
  • Facilities with controlled environments or fire separation
  • WHY IT MATTERS
  • Doors left open can create avoidable risks — from smoke spread to unnecessary fire alarm activations.Door Alert helps:
    • Reinforce good practice in busy environments
    • Reduce false alarm call-outs
    • Maintain separation between areas
    • Support consistent, day-to-day behaviour
  • TECHNICAL SPECIFICATIONS:
    Specification Details
    Power Supply 240V AC
    Supply Current 45mA (quiescent), 155mA max
    Sound Output 105 dB audible alarm
    Alarm Relay Contacts SPCO, 1A @ 30V DC
    Auxiliary Output 200mA @ 12V DC
    Time Delay Adjustable (default ~1 minute)
    Visual Indicator LED status indicator
    Reset Automatic on door closure
    Enclosure Durable ABS housing
    Tamper Protection Integrated tamper switch with audible alert
    Dimensions Approx. 175 (W) × 125 (H) × 50–60 mm (D)
    Installation Type Surface mounted
    Operating Environment Indoor use
    INSTALLATION

    Door Alert is designed for straightforward installation:

    • Surface-mounted unit
    • Supplied with door contact and pre-wired cable (~1m)
    • Includes wall fixings and installation instructions
