Safety Sensors & Control Systems

Bear Safety Sensors & Control Systems are designed to support automated industrial safety applications using radar detection, motion sensing, and control interfaces. Built for operational environments, the range helps activate warnings, signage, lighting, and safety systems only when movement or risk is present.

MODEL/S AVAILABLE:

120000 Series – Motion Sensor Control Panel
Industrial interface panel designed to switch 240V AC loads using compatible 24V DC sensors or dry contact devices.

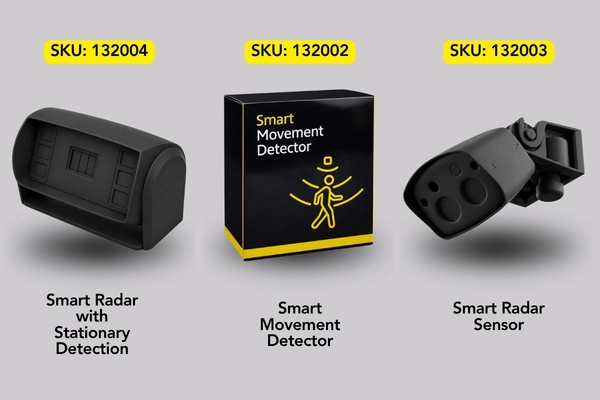

132002 – Smart Movement Detector
Ceiling-mounted microwave motion detector designed for indoor activation and movement detection applications.

132003 – Smart Radar Sensor
Industrial radar activation and safety sensor designed for pedestrian and vehicle detection in demanding operational environments.

KEY FEATURES:
  • Motion and microwave radar detection
  • Vehicle and pedestrian sensing capability
  • Adjustable detection range and sensitivity
  • Indoor and industrial-rated models available
  • Compatible with projected safety systems
  • Supports automated warnings and lighting control
  • Relay-switched outputs (N/O and N/C)
  • Flexible wall, ceiling, and pole mounting options
  • High-visibility activation for dynamic safety systems
  • CONTACT US:
    sales@bearsafety.co.uk
    Send an enquiry
    HOW IT WORKS

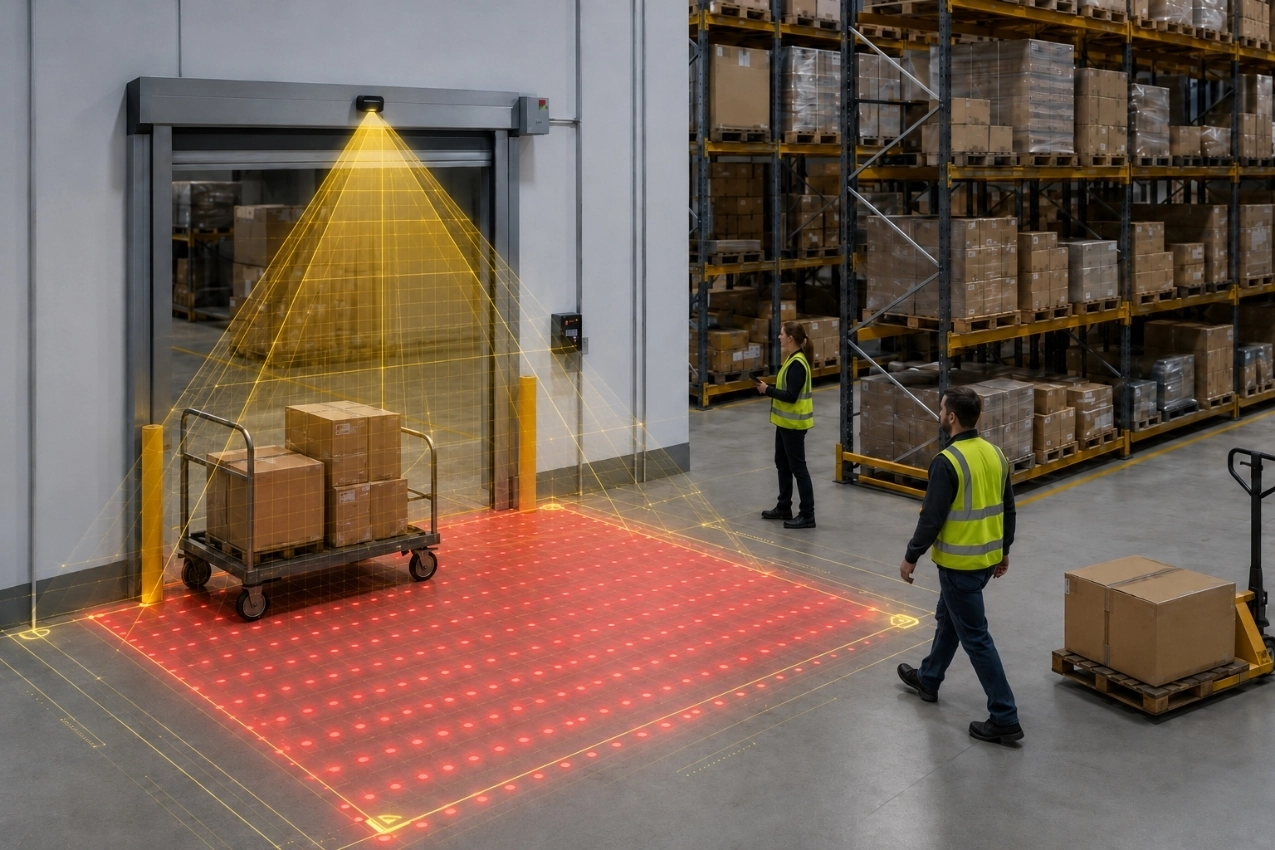

    The system uses motion detection and radar sensing technology to identify movement within defined operational zones. Depending on the model, sensors can detect pedestrian or vehicle activity and trigger connected systems such as projected signage, warning lights, or automated controls via integrated relay outputs and control panels.

    WHERE IT'S USED
  • Warehouses and logistics facilities
  • Manufacturing environments
  • Pedestrian and vehicle interaction zones
  • Blind corners and intersections
  • Automated safety projection systems
  • Industrial entrances and access points
  • Lighting and warning activation systems
  • WHY IT MATTERS

    Traditional static safety measures can become overlooked in busy operational environments. Sensor-based systems help make warnings and controls responsive to live conditions, improving visibility and reinforcing awareness only when movement or risk exists.

    TECHNICAL SPECIFICATIONS:
    120000 Series – Motion Sensor Control Panel
    Supply Voltage 240V AC 50/60Hz
    Sensor Supply 24V DC
    Enclosure Rating IP56
    Mounting Type DIN Rail
    Output Configuration N/O and N/C
    Maximum Output Current 16A
    Operating Temperature -10°C to +50°C
    Sensor Compatibility 4-wire 24V DC sensors
    132002 – Smart Movement Detector
    Detection Technology 5.8GHz microwave radar
    Detection Range Adjustable up to 10m radius
    Detection Angle 360°
    Installation Type Ceiling mounted
    Power Supply 220–240V AC
    Adjustable Settings Time delay & lux settings
    Application Indoor use
    132003 – Smart Radar Sensor
    Detection Method Microwave motion detection
    Operating Frequency 24.150GHz
    Installation Height Up to 7m
    IP Rating IP67
    Power Supply 12–36V DC / 12–28V AC
    Outputs Vehicle & pedestrian relay outputs
    Operating Temperature -30°C to +60°C
    INSTALLATION

    Installation varies depending on the model and application. Sensors can be wall-mounted, ceiling-mounted, or integrated with poles and existing structures. Control panels should be installed by a qualified electrician using appropriately rated wiring and protection devices.
